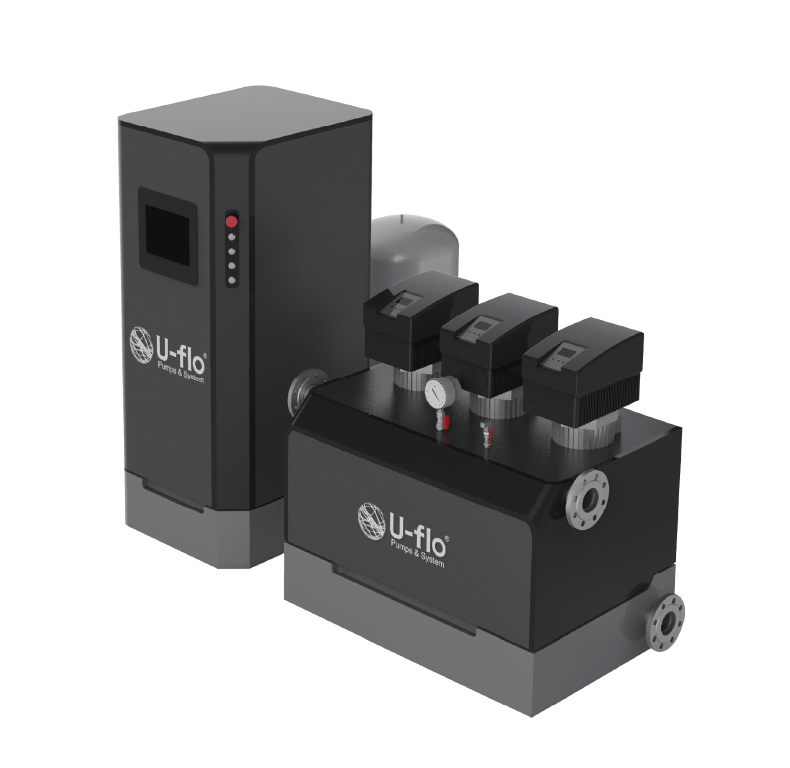

VMBG – Intelligent Ground Pump Water Supply Equipment

Technical Parameters:
Flow range：0-150m3/h *
Pressure range：0-1.3MPa *
Pressure regulation accuracy：≤0.01MPa
Power Supply：380V ± 10% 50Hz ± 5%
Temperature：0℃ – 40℃
Relative humidity：＜ 90% (20℃)
Environment: No conductive or explosive dust, no corrosive metal or destructive gas or vapor

Note: * This parameter refers to conventional products. If there are special requirements, products with greater flow and pressure can be customized for customers.

Performance and advantages:
It adopts the latest structural design, which is more compact and covers a smaller area.

U-flo VM Series stainless steel vertical multistage pump and high-efficiency submersible motor are selected, which can maximize the energy-saving effect in combination with u-flo intelligent frequency conversion control system.

Hydrosmart generation II products adopt integrated design on the basis of Hydrosmart generation I, so that the overall integration degree of the equipment is higher.

U-flo intelligent frequency conversion control system with intellectual property rights is adopted to control the pressure more accurately and realize constant pressure water supply.

All overflow parts of the pump house are made of sanitary stainless steel to eliminate secondary pollution to the water quality and ensure the health of the water quality.

The water supply equipment is equipped with remote communication module to support the Aqulink intelligent water service platform involved in U-flo or the monitoring platform independently developed by customers.

Application range:
Secondary pressurization of buildings
Residential water supply
Villa water supply
Pump house renovation
