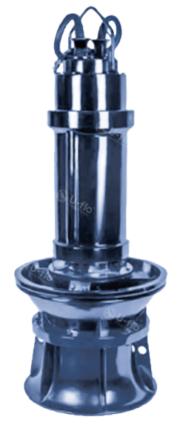

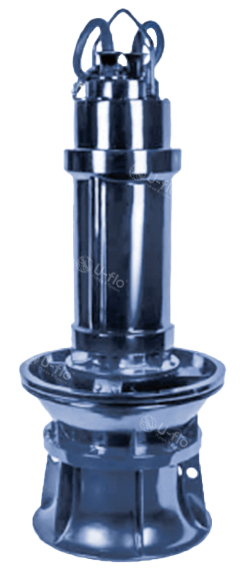

PAF&PMF – Axial & Mixed Flow Submersible Pump
PAF type axial flow submersible pump and PMF type mixed flow submersible pump are the replacement products of the traditional axial flow pump and mixed flow pump motor set. The motor driving the pump is dry type fully encosed submersible three-phase asynchronous motor. This type of submersible pump can be submerged in water for a long time and has a series of incomparable advantages over the traditional unit.
Technical Parameters:
Flow Q: up to 7000m3/h
Head H: up to 22m
Power P: up to 160kW
Liquid temperature: ≤ 40℃
Performance and advantages:
The motor and water pump are integrated for easy installation
Reduce installation area and save 40% of project cost
Adopting double or triple mechanical seals
Protection level IP68 (IEC), Class F (temperature resistance 155℃) insulation
Application range:
Farmland irrigation and drainage
Industrial and mining dock
Water Supply
Pump station drainage
Power station water supply and drainage
