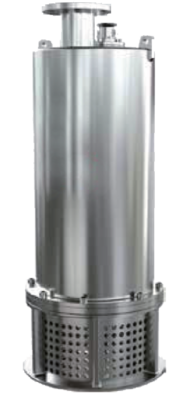

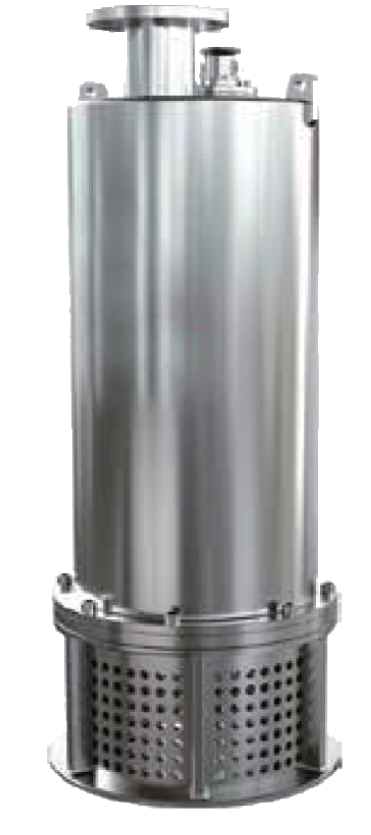

HVQ – High-Head Submerged Sewage Pump

Technical Parameters:
Flow Q: up to 230m³/h
Head H: up to 800m
Power P: up to 315kW

Performance and advantages:

The flow parts adopts a lower support structure, combined with a multi-stage impeller arrangement, ensuring that the pump meets the requirements for high head and large flow under various installation conditions.
Made of hard cast iron, and the flow parts adopt QBQ surface treatment process, which has excellent wear resistance and corrosion resistance.
The mechanical seals have high-pressure resistance,which enables pumps to submerged deeper. the pump equipped with cooling jacket, could not fully submerged in the medium.the flow parts below the motor, water cooling the motor during the operation, extending service life and enabling work at the low water level.
The design of the top outlet is more space saving.
The motor is optional with overheat protection.
There is a pressure relief hole on the pump,which could release the pressure exerted by the medium on the shaft seal

Application range:

Non-explosion-proof scenarios in the chemical, petroleum, pharmaceutical mining, paper making, cement, steel making, power generation, coal processing industries, etc.
Urban sewage treatment plant drainage systems, municipal engineering, etc.
Suitable for the construction industry and others requiring the conveyance of sewage containing particulates, as well as for pumping clear water or liquids with corrosive properties.
Ponds, fish ponds, or scenes where corrosive liquids such as seawater and chemical wastewater need to be pumped.
